Advanced Usage

Quick Links

1. Widgets
2. Joystick Configuration
3. Data Recording
4. Mission Planning

Display Breakdown

Cockpit's main interface consists of three main components:

1. A central region, for regular widgets
2. Mini-widget containers, including the top and bottom bars
3. A sidebar menu icon
   • Normally a sidebar tab arrow on the left
   • Can be configured as a burger menu in the top left corner

Top Bar

The top bar is consistent across Views, and is usually used for displaying mission information mini-widgets and connection statuses.

During operation, it can be toggled between hidden and shown using a Cockpit Action.

Bottom Bar

The bottom bar is unique to each View, and is generally used to display indicators of various kinds, along with vehicle status controllers and interface controls.

During operation, it can be toggled between hidden and shown using a Cockpit Action.

Sidebar Menu

Clicking on the sidebar tab (on the left of the screen) provides access to various configuration options, along with information about the application:

About

The "About" window displays a brief description of Cockpit itself, along with key information about the version being run, and links to relevant resources and help/discussion/contribution channels:

Fullscreen Display

Cockpit can be run within the window it opens in, or as a full-screen application.

Full-screening a browser window usually includes the tabs and search bar at the top, so there's a button in the sidebar menu to make Cockpit itself full-screened instead, and to easily exit from full-screen to resume access to the underlying browser / operating system interface.

Settings

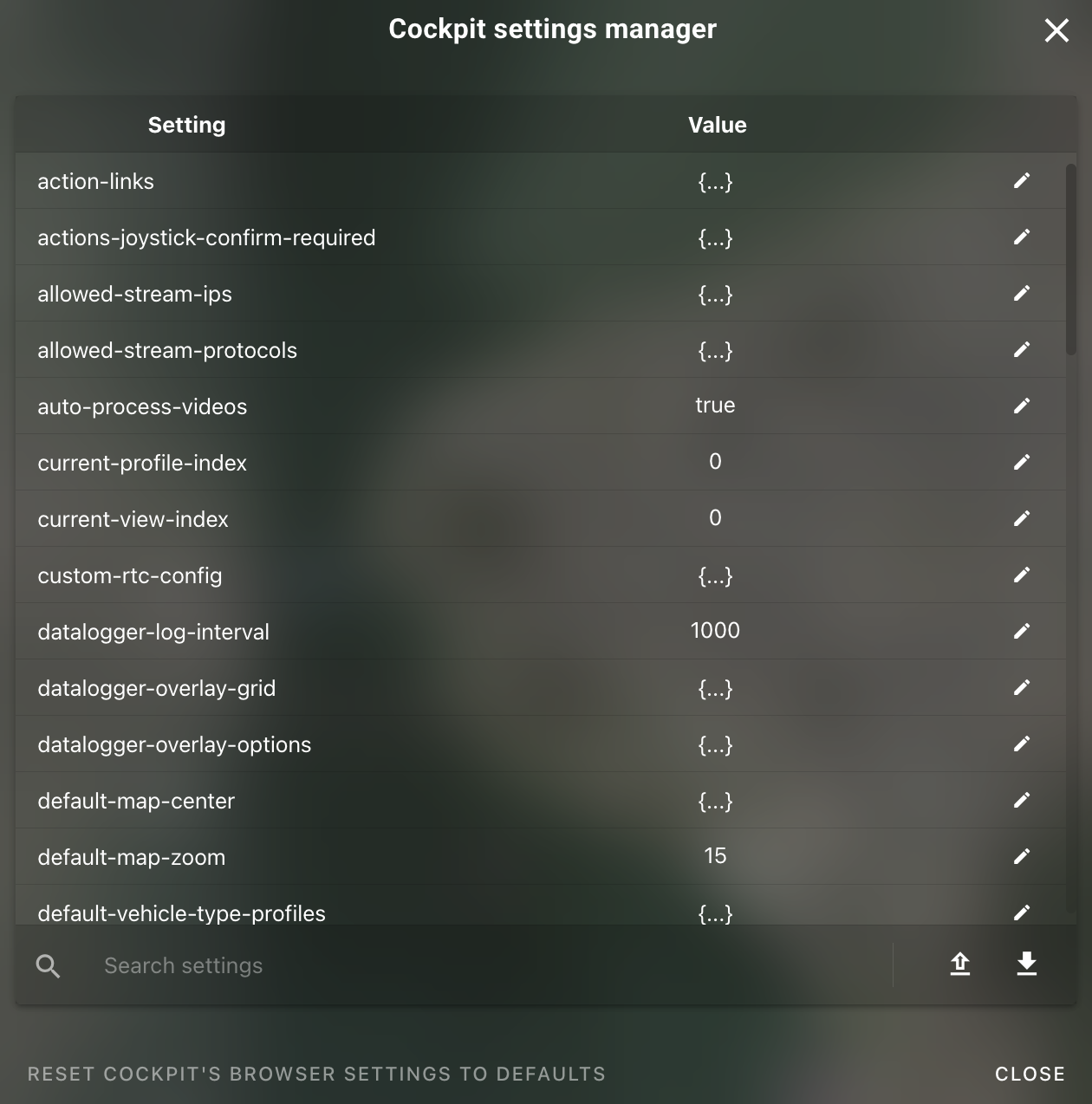

Cockpit's settings control how the application behaves and communicates, including, what data sources it's connected to, and how and where it processes and outputs commands and data (including recordings and logs):

The available settings interfaces and options are covered in a dedicated section below.

Edit Mode

Cockpit is built around a configurable widget system, so you can design and modify custom interfaces for different applications.

Organisation

Cockpit's interface consists of a configurable widget system, with

0. Users
   • for supporting different operators
   • can be added and switched between in general configuration
1. Profiles
   • for supporting different vehicle types and/or operating modes
   • can be added/removed/duplicated, saved and loaded (to/from both the vehicle and the display device), and switched between in edit mode
2. Views (within each profile)
   • for handling different operation modes / targets within a mission
   • can be added/hidden/removed/duplicated, saved and loaded to/from the display device, and dynamically switched between during operation
3. Widgets (within each view)
   • for information display and vehicle control
   • can be added/removed, moved around, and resized

Users

Users are more abstract than the interface, and are mostly helpful for the following situations:

1. Multiple vehicle operators who share a single control station computer (e.g. within an organisation), and don't want to use the same configurations
   • This can alternatively be achieved with Profiles, but having separate users provides a cleaner separation, and easier options to reset everything
2. Multiple operators who share a single BlueOS-based vehicle, and each want to synchronise their own configuration with it

For individuals with their own vehicles and control computers, it is generally fine to set a username once and then ignoring that the "user" level exists.

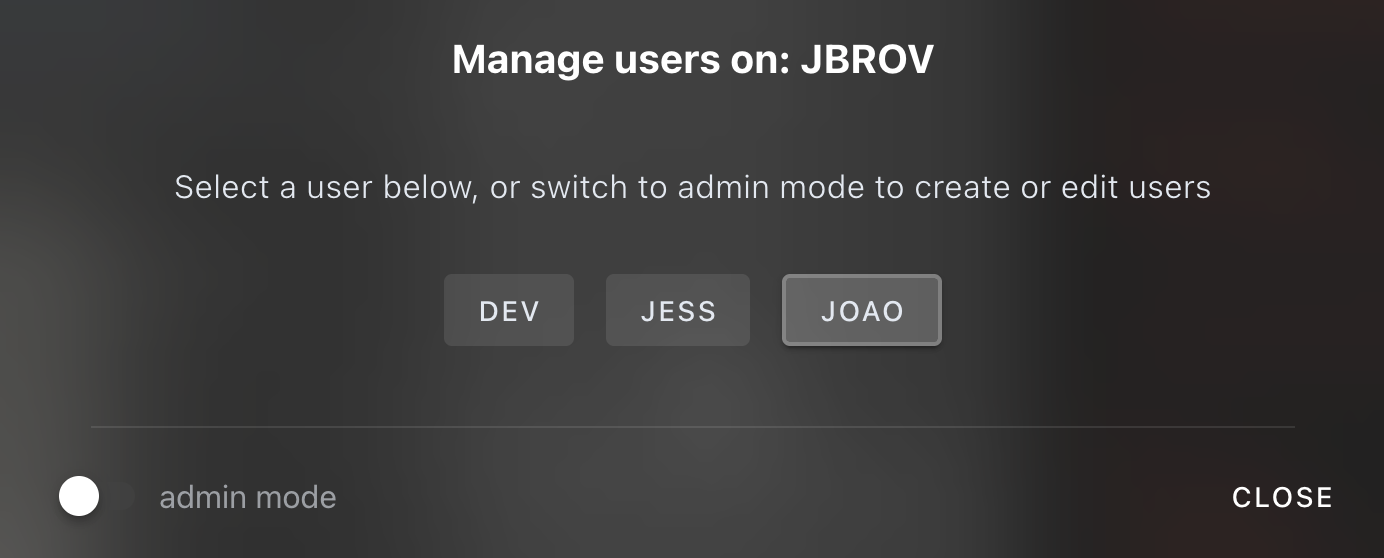

Switching users is done through Settings / General:

Creating new users is possible by clicking the "Add New" button, and choosing a unique name. The new user copies the Profiles of the currently selected user (if one exists - otherwise it uses Cockpit's default profiles).

It is not currently possible to delete users.

Profiles

A "profile" is a collection of views that are relevant to a particular use-case or vehicle.

If one control station computer is used for multiple complex use-cases (which each require multiple separate Views), then they can be separated into Profiles and the most relevant one can be switched to at the start of each mission.

Alternatively, if the same control station computer is used to control different types of vehicles (e.g. a boat, an underwater ROV, and a drone) then the operator can load the appropriate vehicle control interface when they connect to a different vehicle type. Profiles are registered with the vehicle types they're expected to be used for, so if there is only one profile that matches the connected vehicle then Cockpit will load that automatically.

For BlueOS-based vehicles, Cockpit can automatically store and load Users and their Profiles on/from the vehicle, which can then be synchronised when Cockpit connects (including on separate control station devices, or on a different network), which makes it convenient to quickly and easily load familiar profiles.

Default Profiles

Cockpit includes default profiles for submarine, boat, and generic MAVLink aerial vehicle use-cases. It is possible to restore to these (as a known reasonable interface) in case something goes wrong with your custom profiles, but be aware that the defaults may change between different Cockpit versions, so may end up "restoring" to an interface you haven't seen before.

Profile Configuration

Profiles are managed via the top left corner region of edit mode, which can be accessed through the sidebar menu. Clicking the three dots (⋮) to the right of the current profile allows renaming and configuring it:

It is also possible to duplicate, export, or delete it, as well as import or create a new profile, reset this User's profiles to the default ones, and enable or disable the alignment grid for widget placement and sizing:

Views

A "view" is like a page that widgets can be displayed in. It is possible to configure multiple separate views and switch between them during operation (including with a joystick), which is useful if you have different interface preferences for when you're performing different operations.

As an example, you may have one view tailored to general navigation, and another that's designed around inspections. The first view could then be used while getting the vehicle to the inspection site, and then the second view can be switched to once it's time to actually perform the inspection.

It is possible for different devices or browser instances to connect Cockpit to a vehicle (or load Cockpit from a vehicle) at the same time (e.g. using separate browser profiles, or one display in incognito mode, but currently not multiple tabs of the same browser instance), with their views configured independently. To use the same component layouts across instances you can sync them through the vehicle, or manually export the desired view(s) from one and import them into the other(s).

Views Configuration

• Open edit mode via Settings / Edit Interface in the sidebar menu
• Expand or hide the views manager via the arrow in the top left corner

• Select a view to edit, and/or create, hide/show, or remove views as desired
  • Views can be imported from an external file, or exported to a file for sharing
  • Clicking on the cog settings icon allows renaming a view, and determining whether the bottom bar is shown or hidden/docked when Cockpit boots
    • It is always possible to toggle the current bottom bar visibility using Cockpit Actions (e.g. via a joystick button)

• The "Widgets in View" list allows
  • hovering over a widget name to highlight its display in the interface
  • dragging the widgets in the main view area to reorder which widget is on top
    • This helps for use-cases like overlaying a HUD element on a video display
  • removing an existing widget from the current view
  • resizing a widget to fill the entire view

• New widgets can be added via the bottom section
  • Dragging a regular widget card into the main display area adds it to the View, after which it can be positioned and resized as desired
  • Mini widgets have fixed sizes, but can be dragged and dropped into the desired location in the top/bottom bars or in a custom container widget
    • The top bar is shared between Views, and the bottom bar is unique to each View
  • The selector in the bottom left can be used to choose between editing regular, mini, or input widgets

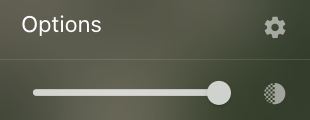

• Some widgets can be configured, by clicking the cog settings icon in the "Widgets in View" list
  • There are currently cog icons for all widgets, so if you click a cog icon and nothing happens it means that widget is not configurable

Widgets

There are several types of widgets available, including different displays of the same information for use in different contexts:

• Regular Widgets include detailed displays like videos, maps, instrument gauges, and overlays
  • They can only be located in the main display area
  • Their positions and sizes snap to the Profile alignment grid, if it is enabled
• Mini Widgets are small (usually text-based) indicators and buttons
  • They can be in the shared top bar, or in the View-specific bottom bar or a container widget
• Input Widgets are like mini-widgets dedicated for custom user inputs / commands
  • They can be in the shared top bar, or in the View-specific bottom bar or a container widget

Mission Information

Mission Name

By default, a name is randomly generated for the current mission/operation each time Cockpit is opened/restarted, and displayed in the mission name indicator:

Clicking on the widget allows setting a custom name, which is then used for saving files and video recordings:

While modifying the mission name it is possible to restore the previous name, in case you change you mind or make a mistake.

Alerter

The alerter mini-widget allows displaying Cockpit's alerts, along with their severity:

Hovering over the widget displays a scrollable history:

Power/Battery Indicator

Configuration allows choosing to display current or instantaneous power draw, or alternating between both

Date and Time

The current date and time can be displayed in a mini-widget:

💡 If the time is needed in seconds, see the Alerter.

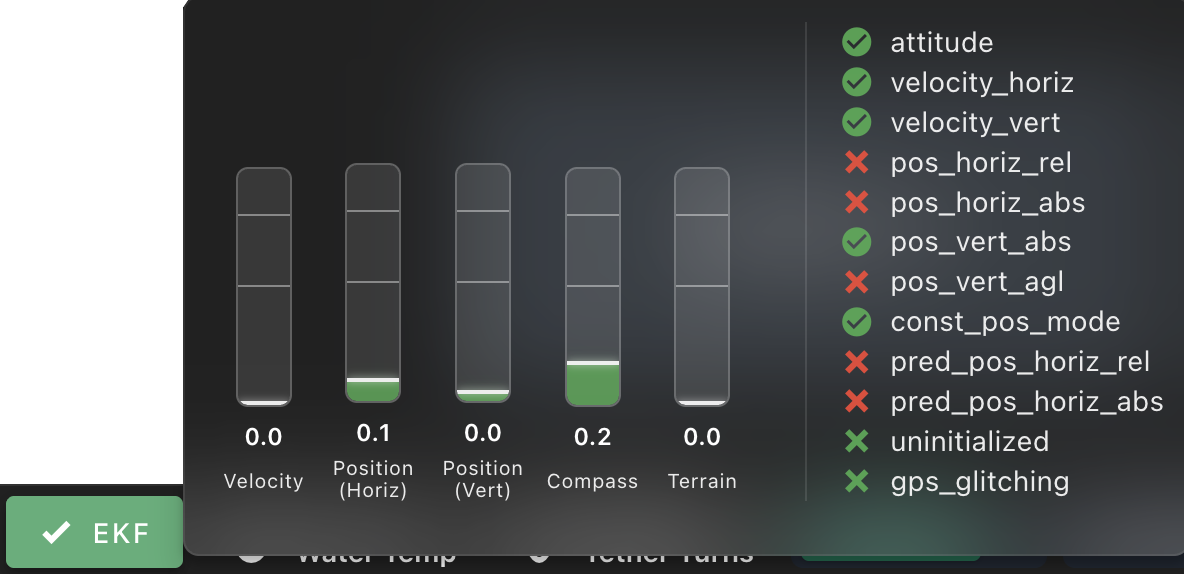

Connection Statuses

Vehicle Connection Indicator

When Cockpit gains or loses connection with the vehicle it displays a green/red border around the screen. The vehicle connection mini-widget provides a continuous indication:

Joystick Connection Indicator

The joystick connection mini-widget indicates whether a joystick is disconnected, disabled, or connected:

Clicking on the widget allows manually disabling the connection:

which can be useful if multiple users are switching control of the vehicle between separate devices with Cockpit open, or to prevent a faulty joystick from sending errant commands without needing to physically disconnect or unpair it.

GPS Connection Indicator

For vehicles that use satellite positioning, the GPS connection mini-widget indicates the number of connected satellites, and the status of the position lock:

Vehicle Status Controllers

Vehicle status and modes are controllable using Cockpit Actions assigned to joystick button functions, but these mini-widgets provide an on-screen interface for doing so, while also presenting the current state.

Arm / Disarm

Flight Mode

Interface Controls

View Selector

The actively displayed View is specified and can be switched between using the View selector mini-widget:

💡 It is also possible to switch Views using Cockpit Actions assigned to joystick button functions.

Very Generic Indicators

These are versatile mini-widgets that can be configured to track almost any information Cockpit receives from the vehicle, including:

1. any variable that is inside a MAVLink message
   • messages with an ID field are separated into different instances per ID
   • NAMED_VALUE_FLOAT/INT messages are split by name, including showing custom ones (Cockpit does not need to know these names in advance)
   • only messages from ArduPilot vehicles are currently known about / supported
     • e.g. those from the common or ardupilotmega message sets
2. select information from the onboard computer
   • e.g. blueos/cpu/tempC for the BlueOS CPU temperature

For configuration convenience, several pre-made presets are available for usage with common variables:

For custom setups, it is also possible to specify a display unit, a value multiplier, an icon, the number of digits after the decimal place, and a custom display name:

Selecting a variable is done through a dropdown, which can also be typed into to perform a fuzzy search for terms of interest.

Attitude Indicators

Attitude HUD

The attitude HUD widget displays the vehicle's pitch and roll as a heads-up display overlay:

It is possible to configure which components get displayed, as well as the line colour:

For vehicles with a tilt-controlled camera mount, specifying the camera vertical FOV allows the attitude HUD to account for the camera tilt angle in the displayed pitch lines and center aim indicator.

Virtual Horizon

The virtual horizon widget displays the vehicle's pitch and roll as though on the gauge in a plane:

It is most useful for guided and/or autonomous control, where the main display is of the vehicle's position.

Attitude Values

Roll, pitch, and yaw, and their rotation rates, can be accessed through the ATTITUDE MAVLink message, which forms the basis for the main attitude widgets.

When operating in an attitude-stabilised flight mode, the target attitude values are accessible through the NAV_CONTROLLER_OUTPUT MAVLink messages, and can be displayed in Very Generic Indicator widgets if desired.

Heading Indicators

Compass

The compass widget displays the vehicle's orientation as though looking at a compass in your hand:

It is most useful for guided and/or autonomous control, where the main display is of the vehicle's position.

It is possible to configure the vertical direction to be fixed to North ("North-up") or to the vehicle's forwards direction ("head-up").

Compass HUD

The compass HUD is a first-person compass view, as though inside a compass and looking in the direction the vehicle is pointing (its heading):

It is possible to configure whether the exact heading angle is shown, whether to use a -180 to +180° range (default is 0 to 360°), and the colour of the lines:

Heading Values

Heading indicators typically use the yaw from the attitude values, but for vehicles with relevant sensors and configuration, the raw heading form a GPS unit can be accessed through GPS_RAW_INT messages.

Depth Indicators

Depth HUD

The depth HUD indicates the vehicle's current depth as determined by its external pressure sensor:

This is primarily useful for underwater vehicles.

Configuration determines whether the exact depth value is shown, and the colour of the lines:

Depth Mini-Widget

Altitude Indicators

Altitude Indicator Mini-Widget

The Altitude mini-widget displays the vehicle's altitude estimate, relative to its barometer calibration point.

It is intended for aerial vehicles, so positive is upwards.

Altitude Modifiers

When using a Takeoff/Land or Change Altitude Commander mini-widget,

a slider is created to specify the desired altitude to fly to:

Map

For vehicles with a positioning system, the map widget displays the registered home location and the vehicle's current position, with an option to track the vehicle's path over time.

There are buttons

• in the bottom left to
  • move the map to follow the registered 'home' location
    • this may move around if the control station computer is on a boat
  • move the map to follow the vehicle's current position
  • download the current mission from the vehicle, and display it on the map
  • run the mission that is on the vehicle
• in the bottom right to zoom in and out, and
• in the top right to
  • Switch between structured and satellite map views
  • Include sea marks
  • Include water depths

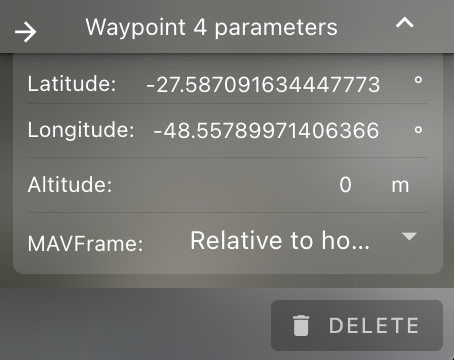

💡 Mission Planning is documented in a dedicated section.

Configuration allows showing or hiding a trail of the vehicle's path over time:

For vehicles with a supporting autopilot firmware and valid position estimate it is also possible to guide the vehicle to a new position via GoTo commands (which can be sent by clicking a target location on the map, and clicking the GoTo option), and setting the default map position:

It is not currently possible to manually specify the vehicle's current position, GPS origin, or home location.

Video Widgets

Cockpit has a few different widgets for handling videos from different sources.

Multiple video widgets can be added to display different video streams, with options for how the frames should fit within the widget:

• cover: maintains the video aspect ratio, but expands the frames to fully cover the widget, and crops off the sides or top+bottom if they extend beyond the widget boundaries
• fill: stretches the frames so that all sides are against the corresponding widget boundary
• contain: maintains the video aspect ratio, but shrinks the frames to fully fit inside the widget, adding transparent padding at the sides / above+below as necessary

WebRTC Video Player

WebRTC Video Player widgets can display an available WebRTC video stream, as set up through the Video Configuration menu. BlueOS uses the MAVLink Camera Manager to automatically create a WebRTC stream for applicable video streams.

Configuration allows selecting which video stream to display, flipping and rotating the stream image, and choosing how the frames should fit within the widget (as described above):

If your video stream is having some issues, the available stream performance statistics may help to determine the cause of the problem:

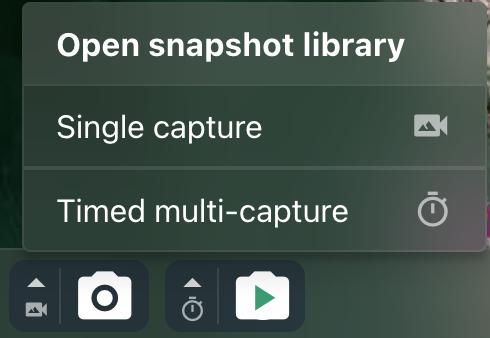

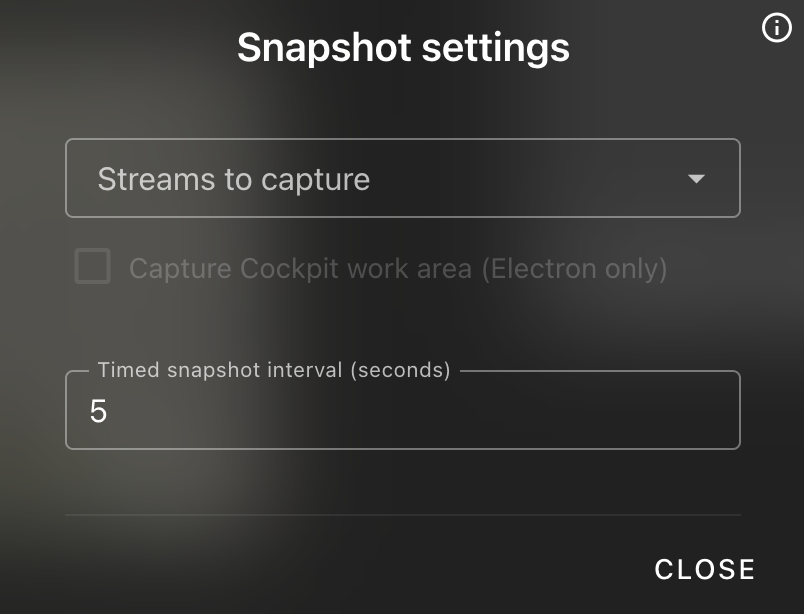

WebRTC Video Recorder

It is possible to directly record an incoming WebRTC video stream (not the scaled and cropped/flipped/rotated display of the widget):

Clicking the red icon on the left allows quickly starting and stopping recording of the currently specified stream.

Clicking the stream name in the middle of the widget allows choosing which stream to record:

Recordings are saved using the mission name and starting timestamp, and can be found in the Video Library. When videos are available an indicator shows on the right side of the recording widget, which can be clicked to open the library directly.

💡 Recording occurs in the display device (not onboard the vehicle).

💡 When running Cockpit in a browser, downloading recordings currently temporarily stores them in memory, which may limit the maximum duration of individual recordings. The standalone application records videos directly to the filesystem, so does not have this issue.

To make the recorded videos easier to analyse, Cockpit can be configured to log telemetry values, and record them as a subtitle file for convenient video playback:

If a recording is ongoing, Cockpit will try to prevent the tab/application from closing, with a warning:

URL Video Player

The URL video player widget displays a video from a URL. This is useful for testing IP cameras that are not being redirected via BlueOS, but can also be used to display online videos if that is for some reason relevant.

Configuration allows selecting which URL to stream a video from, as well as options for whether to play the video automatically, whether it should loop when complete, whether it should play sound or be muted, whether playback controls should be exposed, and choosing how the video frames should fit within the widget (as described above).

💡 See also the External Displays section, for some alternatives with related functionality.

External Displays

IFrame

The iframe widget provides an inline frame that can display another HTML page within the Cockpit interface. This is particularly useful for showing the interfaces and displays of IP cameras and BlueOS Extensions:

Configuration determines the URL to fetch the page from, as well as the overall transparency of the iframe:

Automatic External IFrames

HTTP Servers that provide a register_service endpoint (e.g. BlueOS Extensions) can provide one or more URLs for Cockpit to automatically detect and present as External IFrame widgets:

The register_service endpoint should include a "cockpit" key in its "extras" dictionary, pointing to an endpoint listing the available widgets:

/register_service

{
   ...
   "extras":{
      "cockpit":"/cockpit_extras.json"
   }
}

The Cockpit-focused endpoint should including a name, version, iframe URL, and an optional URL for configuration of each widget:

cockpit_extras.json

{
   "target_system":"Cockpit",
   "target_cockpit_api_version":"1.0.0",
   "widgets":[
      {
         "name":"ExternalWidgetName",
         "config_iframe_url":null,
         "iframe_url":"/path/to/widget/page",
         "version":"1.3.8"
      }
   ]
}

If no configuration URL is provided, the standard IFrame Widget configuration options apply.

Image Viewer

The image viewer widget shows an image that is accessible to the control station computer via its network.

Images from the internet can be included (e.g. a logo for branding) as long as the computer has internet access when Cockpit is started.

💡 This is most useful for images hosted on the local network, and was designed to display the output of a self-replacing mjpeg like from an ESP32-Cam. It could also display images hosted by a BlueOS Extension.

Data Plotting

Plotter Widget

The plotter widget allows plotting data on a graph:

Configuration options are provided for selecting the variables to plot, and modifying basic appearance characteristics:

It is possible to change the decimal resolution of the displayed statistics, and the limit the number of plotted samples to improve visibility and performance.

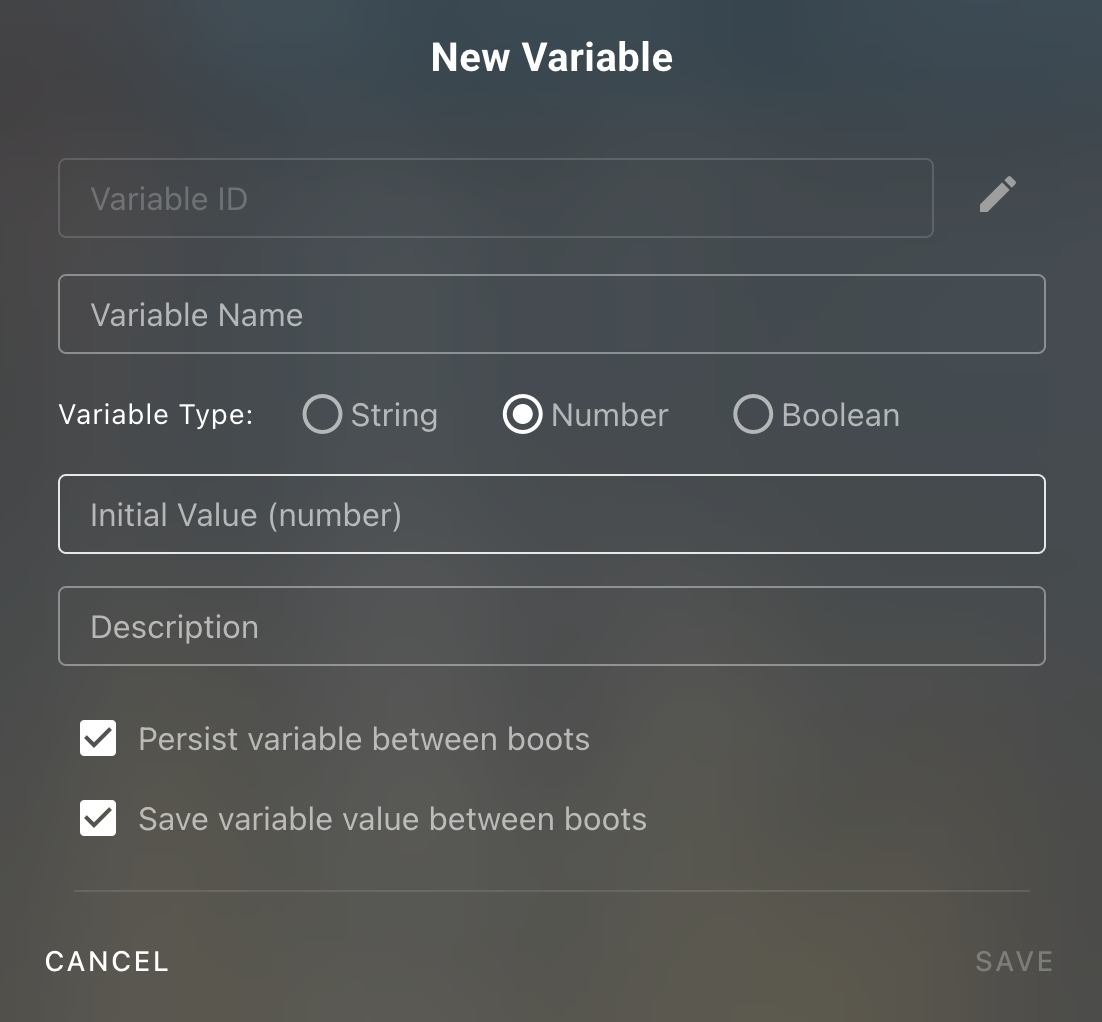

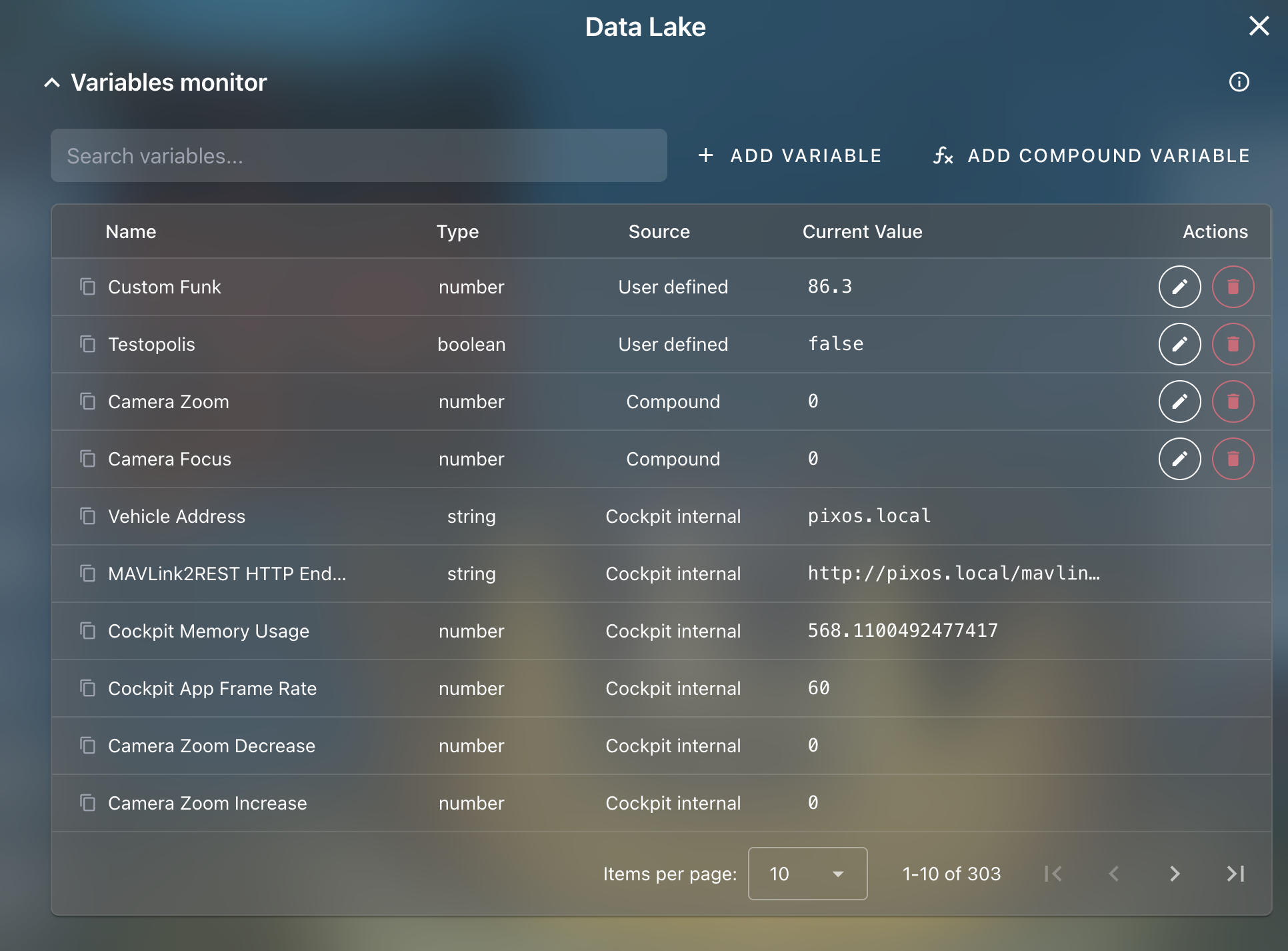

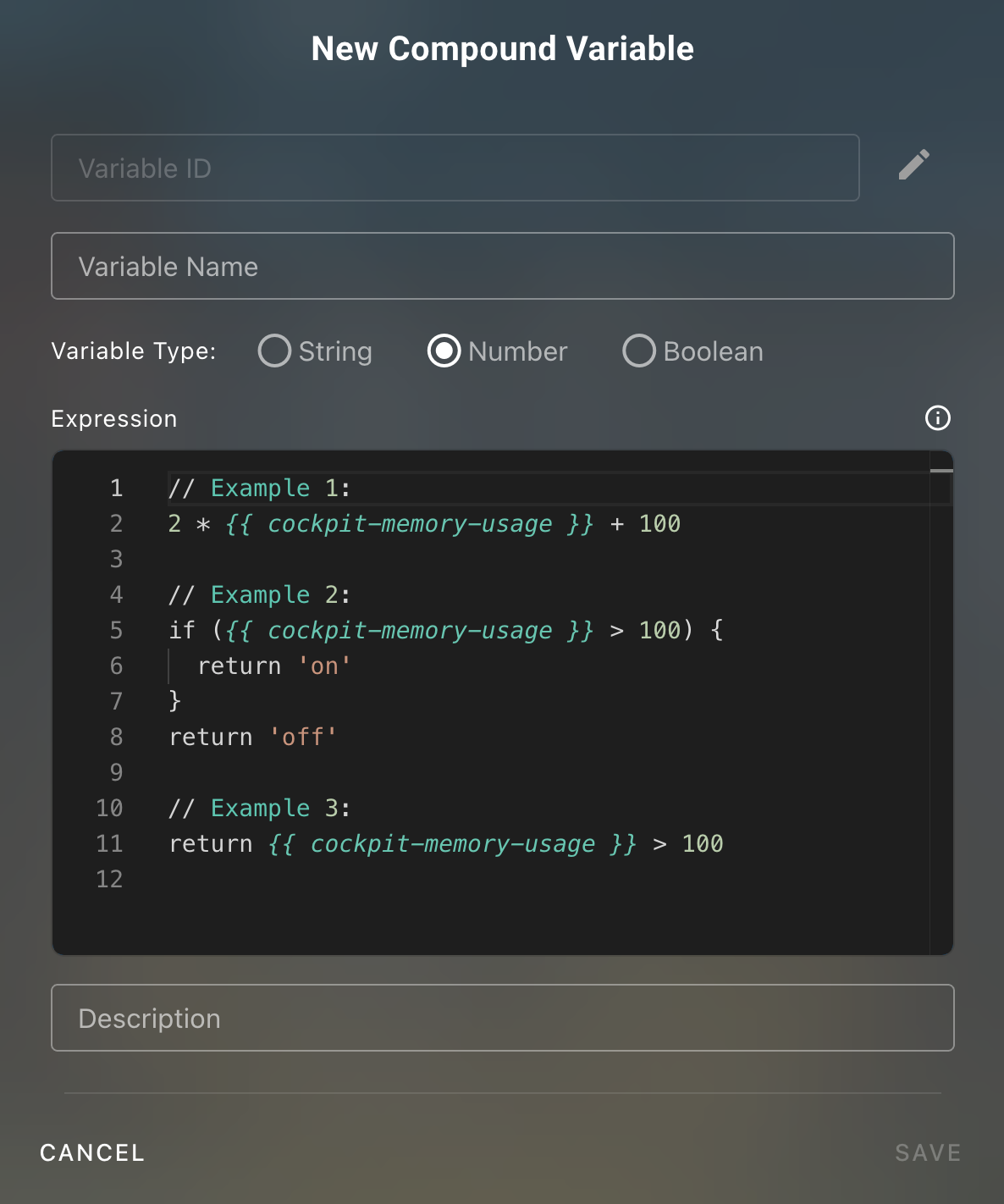

💡 The data lake which the widget gets its data from by default provides access to the Cockpit memory usage, MAVLink message fields, and values added from Custom Actions. It will soon be connected to the BlueOS-specific options available to Very Generic Indicators as well.

Do It Yourself Widget

• Completely custom elements, code logic, and styling

• Runs code automatically when Cockpit starts/refreshes
  • Unlike Custom Actions, which need to be triggered to run
• Can listen to, create, and modify data lake variables, and register and/or execute Actions using the Cockpit API (window.cockpit.*)

Container Widgets

Regular widgets for storing mini widgets and input widgets in the main View area.

Mini Widget Bar

A generic rectangular container widget, where list order determines internal positions.

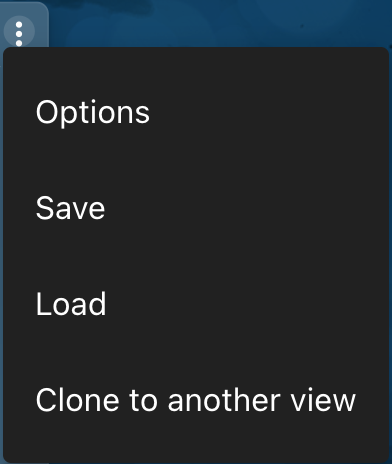

Custom Widget Base

A collapsible, nameable, movable container widget, with a grid of internal position options.

Input Widgets

Input widgets should be placed in a container widget, and can be configured by clicking on them when in Edit Mode.

While other widgets generally have predefined behaviour, these are specifically designed to trigger and set variables for use as parameters in Custom Actions.

Action Buttons

Buttons can trigger a specified Action when pressed.

Boolean Inputs

For parameters that require True/False or 0/1 values, you can use a Switch or Checkbox Input widget:

Multi-value Inputs

If a parameter has a set of possible value options, that can be represented using a Dropdown Input widget:

Range Inputs

Parameters with an integer or decimal range of values can be set using Dial and Slider Input widgets.

Dial Inputs allow configuring a value range, rounded to the nearest integer:

Slider Inputs allow configuring a value range, rounded to the first decimal place (e.g. 0.1):

Input Labels

If there are separate groups of Input widgets in a Custom Widget Base, it can be useful to give them headings with Label widgets:

Behaviour Configuration

Cockpit's behaviour can be configured via the sidebar menu, with the following tabs:

General

The general settings cover top level configuration of Cockpit, to set up who is using it and how it should connect to a vehicle:

• Create and switch the active User
• Specify the primary network address to connect to the vehicle
• Optionally override the autopilot / MAVLink router telemetry connection address
• Optionally override the WebRTC media connection address, for video streaming
• Optionally customise the WebRTC connection configuration values

Interface

The interface settings cover high-level configuration options about Cockpit's appearance and data displays:

It is also possible to rearrange and modify the components and widgets displayed during operation, which there's a dedicated interface for managing in Edit Mode.

Joysticks

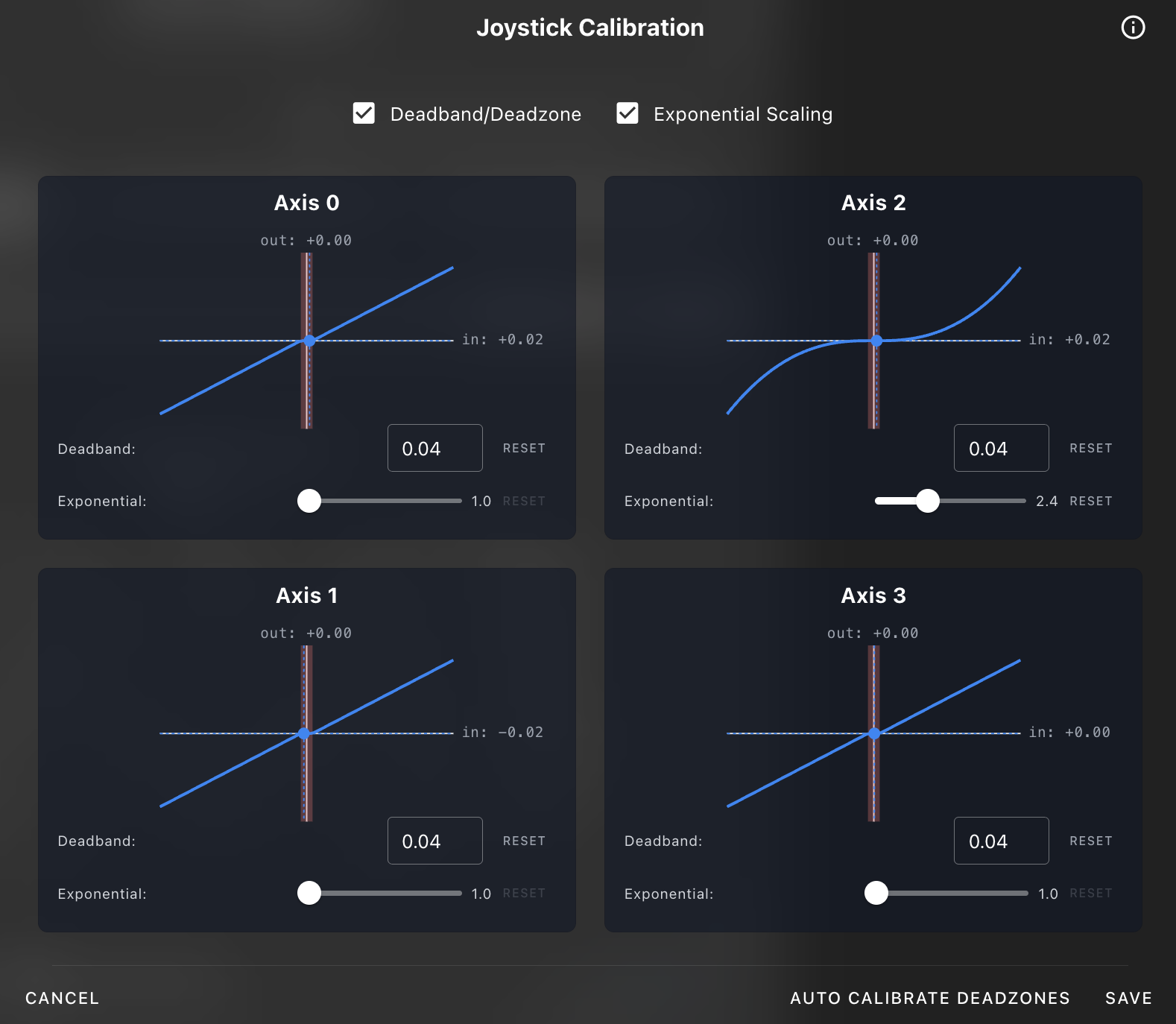

Cockpit is intended to work with arbitrary joystick types, and allows mapping joystick buttons and axes to various protocol functions, which can send inputs and commands to the vehicle, or trigger interface events.

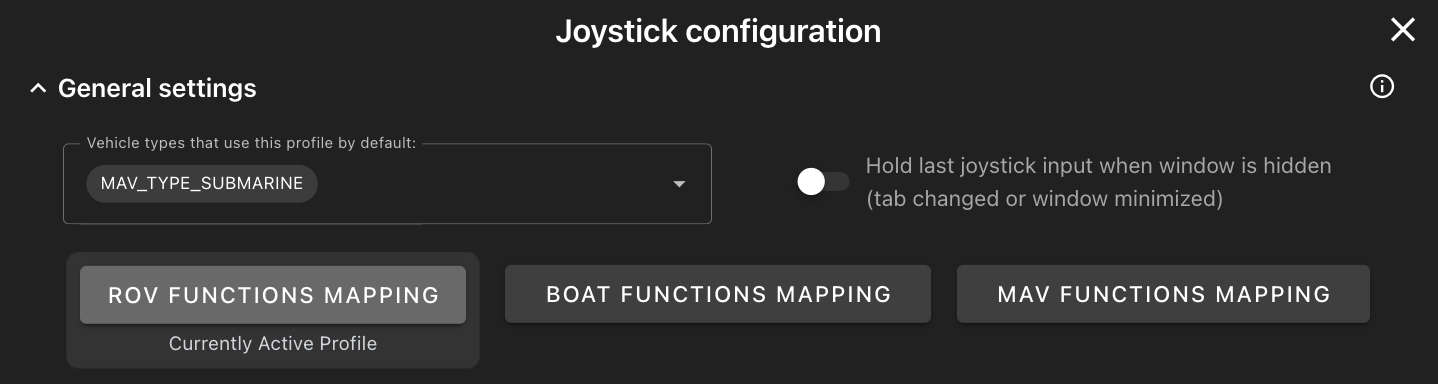

💡 The default function mapping is selected based on the connected vehicle type, and Cockpit automatically synchronises function mappings to/from the User, but it is also possible to manually export them as a file, and import them into another User or a different Cockpit instance/device.

Known joystick types have an interactive diagram for mapping button and axis functions visually:

Button presses and axis movements should be mirrored on the diagram, and clicking on a button element in the diagram allows remapping its mapped function.

💡 Axes currently must have unique functions, so mapping an axis to an Action that is already in use will result in that Action being unmapped from whichever axis was using it previously.

There is also a table view, which is available for both known and new joystick types:

Buttons can be remapped to different Actions using the edit pencil at the far right of the corresponding row.

💡 Support is built in for simultaneous input from multiple sources, including multiple joysticks, and by default each joystick can provide up to 32 axis ranges and 32 buttons.

Joystick Protocols

When mapping the functionality of a joystick button or axis, there are multiple protocols to choose from:

MAVLink MANUAL_CONTROL Messages

MANUAL_CONTROL MAVLink messages are automatically transmitted at 25Hz, which is not currently configurable.

💡 While it is generally expected for there to be a vehicle connected, Cockpit is capable of sending MAVLink Messages to a MAVLink system more generally, even without a vehicle included.

⚠️ If the browser tab is changed away from Cockpit, or the Cockpit application window is minimised, Cockpit loses access to the joystick inputs, and normally stops sending MANUAL_CONTROL messages to reflect the loss of input. This can trigger an autopilot failsafe, which may not be desirable, so an option is provided in the top right of the joystick page to tell Cockpit to repeatedly send the last joystick input it received before losing access to the joystick.

It is important to always be conscious of where your vehicle is, and what kind of hazards it is operating near.

Button functions are determined by the autopilot firmware - e.g. in ArduSub they correspond to BTNn_FUNCTION parameter values.

As a few caveats:

• ArduSub <= 4.1.x only supports 16 independent buttons and 4 axis ranges in its MANUAL_CONTROL handling
  • More recent versions support the extended protocol, with 32 buttons and 6 motion axis inputs
• ArduRover does not support buttons via the MANUAL_CONTROL protocol
• When mapping the Z (vertical) motion axis range, note that ArduSub uses 0 to +1000 for full reverse to full forwards, whereas other vehicle types use -1000 to +1000

The function mapping decision process is designed to minimise intrusiveness to existing setups. When mapping a MANUAL_CONTROL button function to a joystick button, Cockpit

1. First tries to use already mapped functions
   • e.g. if there is already a BTNn_FUNCTION configured to enable Stabilize mode, a Cockpit button being set to enable Stabilize mode will map to that existing function bit
2. Then overwrites available Disabled BTNn_FUNCTIONs
3. Then tries to overwrite any mapped function bits that Cockpit currently isn't using
   • If you try to change a Cockpit function to a MANUAL_CONTROL function when there are no buttons left it will display an error message about insufficient buttons

It is permitted to map the joystick button functions without a vehicle connected, in which case any relevant autopilot parameters will be automatically remapped once the vehicle connects. If more MANUAL_CONTROL button functions have been assigned than are supported by the vehicle then the extra ones are removed, and a warning is raised to notify that the configured mapping is not fully as designed.

Cockpit Actions

Joystick buttons can also be configured to run more general functionalities, like modifying the interface or sending a single MAVLink message. These options can be provided (or defined) using Cockpit's Action system.

Modifier Keys

Modifiers allow sacrificing one button in order to add an extra functionality slot for every non-modifier button. Pressing a button while a modifier is held runs the modified function instead of the regular button function.

Currently only a single modifier is available (Shift). As a special case, when a shift functionality slot is configured as a MAVLink MANUAL_CONTROL protocol function, it will activate BTNn_SFUNCTIONs rather than the regular BTNn_FUNCTIONs, which allows additional MANUAL_CONTROL button functions to be configured. Functions from other joystick protocols are unaffected, and can be arbitrarily assigned to regular or modifier-based functionality slots.

Other

Currently only used for the "No Function" option, which is used when a button or axis input is unmapped.

Custom Joysticks

Adding support for a new joystick type requires providing an SVG file with particular element IDs (for function mapping, and so the elements can be dynamically filled when the corresponding button is pressed):

• path_b* is used for different button numbers, numbers can currently be from 0-31
  • the buttons can be remapped during Cockpit configuration by clicking on the displayed button in the SVG display and clicking the "Remap" button followed by pressing the actual joystick button that matches the displayed location
• path_b10/b11 are currently used to denote the joystick axes
  • 10 indicates the left side joystick, 11 indicates the right side one
  • in future there will be support for arbitrary axes and sliders
• New SVGs currently need to be added to the code, but in future will be possible to add/import dynamically

Once Cockpit has a suitably registered SVG file for the desired joystick type, it is possible to perform the relevant "Joystick mapping", from the button IDs presented by the physical joystick to labels that match the corresponding buttons in the SVG file. This mapping can then be exported to the computer and/or the vehicle, and imported to new Cockpit instances/devices later.

Video Streams Configuration

Available video streams and connection settings can be viewed and configured:

• Set a custom name for each recognised video stream
  • Edit by double clicking the existing name, or clicking the pencil icon
• Limit which IP address(es) are allowed to be used for video streaming
  • This is particularly recommended if there are multiple available connection routes (e.g. if there is a wired route through a tether, as well as a wireless connection, you should select the tether IP and remove the wireless one to avoid video stuttering from transmission over wifi).
  • By default wired connection pathways (e.g. an ethernet tether or USB cable) are assigned as the preferred pathway, if they are detected
• Limit which network protocol(s) are allowed for video streaming
  • UDP can be lower latency but may drop frames, while TCP enforces frame ordering at the cost of some increased latency and jitter
• Customise the stream pipeline's jitter buffer duration
  • Higher values increase stream latency, but can compensate for network jitter and display the stream with a smoother / more consistent duration between frames
• Configure Video Library behaviours
  • Recorded video chunks can be combined automatically at the end of the recording session (which may take a while on low end hardware), or can be left for the user to trigger manually when they want to download a specific video
  • Videos and subtitle files can be zipped together to download them as a single compressed archive, but the zipping process can take a while if the files are large, which may be inconvenient
  • Access the Video Library from here, or from any video recorder mini-widget

Telemetry

Telemetry values received by Cockpit can be displayed live, but also recorded into video subtitle files.

Available variables can be dragged and dropped into the relevant screen region to specify where they show up in the generated subtitle file, or removed from recording by pressing the X beside the variable name in the grid. It is also possible to style the subtitle file using the Overlay Options expandable section, and specify the subtitle update rate in the Settings section.

Alerts

Cockpit includes a variety of alerts during operation, and provides settings for which ones (if any) should be read using text to speech technology:

Development / Troubleshooting

These features help with error tracking and troubleshooting, so in normal use can generally be left alone:

• Development mode turns on a debugging overlay that displays relevant information about the visible widgets
  • Dev info blur level determines how much the underlying interface is blurred when in dev mode
• BlueOS settings sync allows synchronising Cockpit's settings to the connected vehicle (if it is running BlueOS)
  • This helps with keeping the same settings and profiles if that vehicle is then later controlled using a different device running Cockpit
• Usage statistics telemetry can be automatically sent to the Cockpit development team to help identify and track common errors and performance issues across global Cockpit usage
• System logging creates application logs that can be checked or shared with developers to help debug issues
  • If system logs are disabled then messages are sent to the browser/application console instead, which may reduce performance

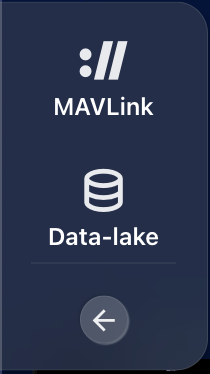

MAVLink Inspection

While it is possible to persistently monitor individual MAVLink message fields using Very Generic Indicators or data plotting widgets, the MAVLink inspector tab allows temporarily monitoring a small number of full MAVLink messages:

• Both incoming and outgoing message instances can be monitored
• Pressing "Reset" clears the currently monitored messages

💡 It may be possible to access more detailed MAVLink inspection and tracking interfaces through the software that is routing MAVLink messages to Cockpit. BlueOS includes a built in MAVLink Inspector, and if using MAVLink Server as the router there is a detailed debugging interface provided.

Missions and Safety

While autopilots often include built in failsafes and pre-arming checks, it can also be useful for the operator's interface to require explict confirmation before a safety-related or mission critical action is even sent to the vehicle.

Depending on the interface configuration, some interfaces may make it easy to accidentally press a button or slider on the screen that has an undesirable outcome, so it is possible to require these actions to be have an extra confirmation step:

A confirmation slider is shown, which can either be dragged to completion in the interface, or confirmation can be provided by pressing and holding a joystick button that is configured to the hold_to_confirm Action:

💡 Actions that are triggered by joystick button presses (instead of interface elements) do not require extra confirmation - it is assumed that the press of a dedicated button is enough confirmation.

If you want a similar feature for joystick button functions, consider assigning them to a modifier-based slot, to require a modifier key to be held down before the function can be triggered.

Default Map Position

For convenience, it is possible to persistently set the default map position and zoom level:

This can be useful before a specific mission, or just to get the map to start near typical operating regions.

Cockpit Actions

Cockpit's Action system provides a set of functionalities that can be triggered from any of Cockpit's supported input sources (e.g. joystick buttons, interface elements, other Actions, etc).

Default Actions

There are some predefined Actions built into Cockpit for convenience, including:

• go_to_next_view
• go_to_previous_view
• toggle_bottom_bar
• toggle_top_bar
• toggle_full_screen
• hold_to_confirm
• start_recording_all_streams
• stop_recording_all_streams
• mavlink_arm
• mavlink_disarm

Custom Actions

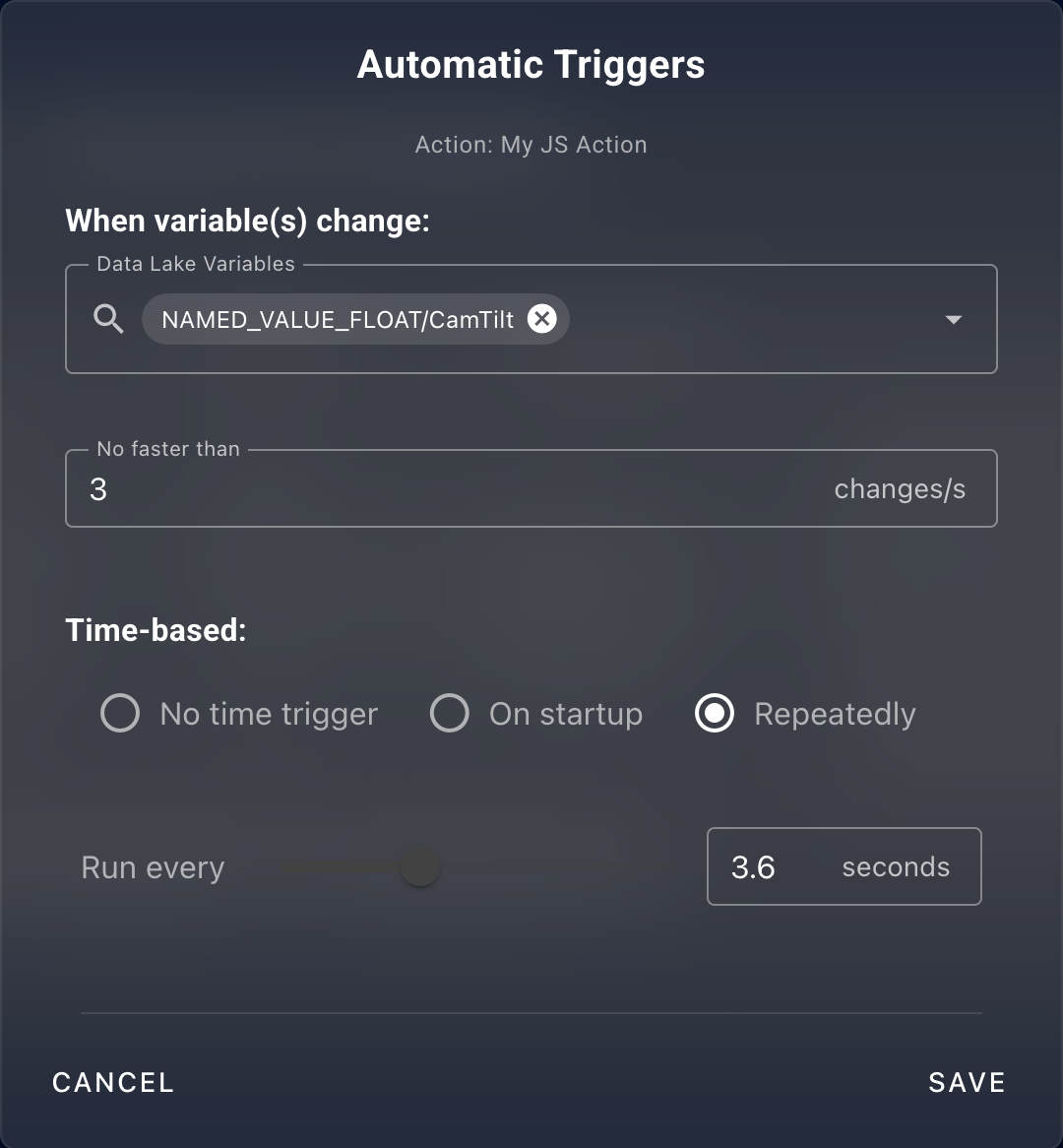

It is also possible to define (and export or import) your own custom Actions, with a few different approaches:

• MAVLink Message Actions are the most confined, and allow sending arbitrary MAVLink messages and commands to the vehicle and any other components in your MAVLink system

• HTTP Request Actions can send arbitrary HTTP requests, including custom URL parameters, headers, and a JSON body
  • These are best for basic communication with arbitrary APIs
  • Parameters that are defined using Input Widgets can be easily modified during operation

• JavaScript Actions are a blank canvas, with all the possibilities (but also the complexities) of programming your own functionalities

Existing custom Actions can be edited, run manually (to test them), exported, or deleted.

💡 More detailed breakdowns and examples will be coming in future.

Status and Recordings

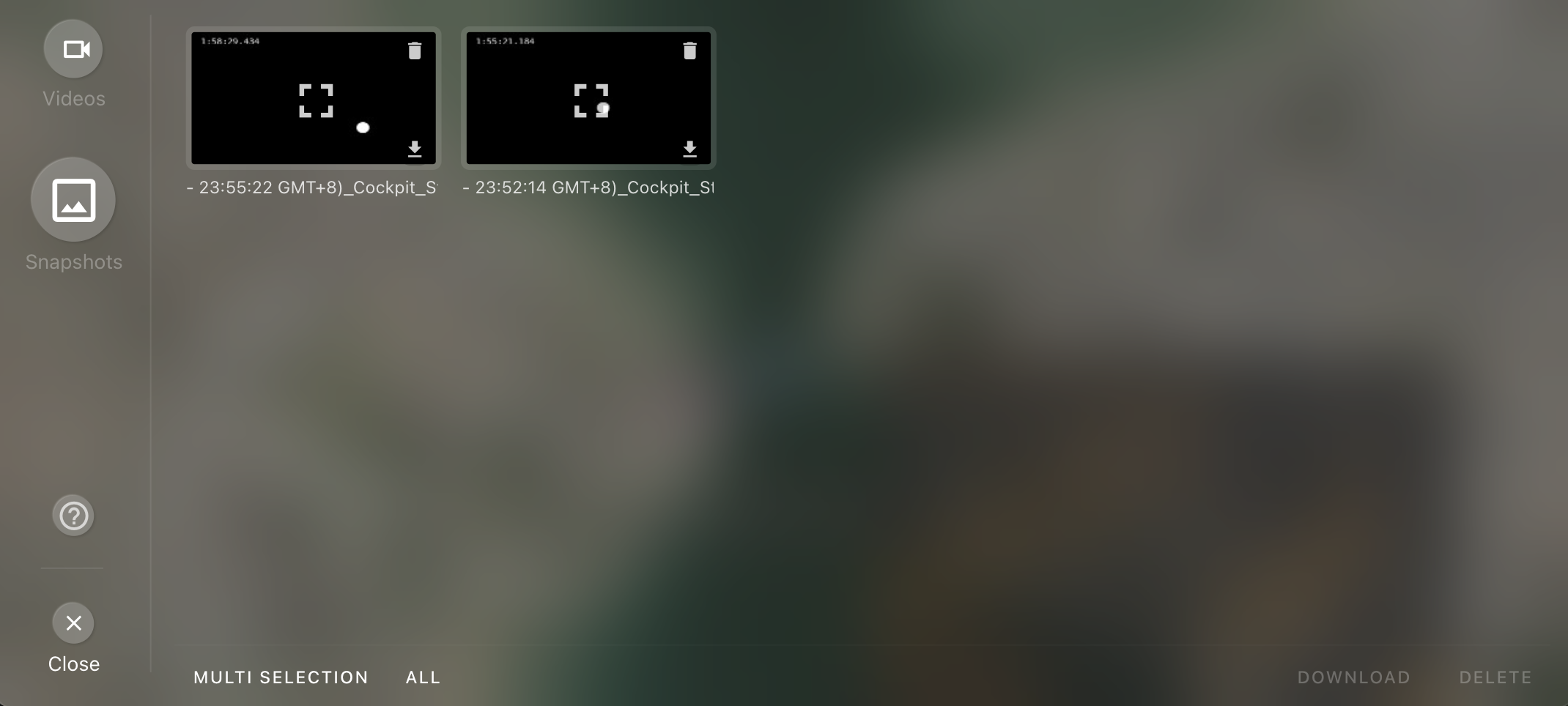

Video Library

• Allows processing and previewing video recordings, and downloading them with corresponding subtitle files
• It is possible to select and act on multiple recordings at once, including downloading or deleting as a batch
  • Selecting multiple files requires either switching to the relevant mode, or doing a long press on the first file in the batch, or selecting a set of individual files using CTRL+Click or CMD+Click (for macOS).

Telemetry Logs / Subtitle Files

Cockpit can optionally record some of its received telemetry values, which can then be turned into subtitle files when recording videos.

💡 For lower level and more detailed communication/telemetry logs, consider checking the logs and debugging interfaces of your MAVLink router. Relevant information can be found in the MAVLink Endpoints documentation for BlueOS users.

Available variables for logging are determined using the mini-widgets included in a View in the active Profile, including Very Generic Indicator widgets, which can display almost anything Cockpit receives from the vehicle. It is also possible to add custom text values, to include extra metadata like a company name or vehicle operator.

💡 Using a hidden View allows configuring mini-widgets for any variables you want to record but do not want to display during operation.

It is possible to configure the logging frequency, as well as which variables are logged and where they appear in the generated subtitle files using the telemetry settings.

When a video recording completes, a corresponding subtitle file is generated by slicing the raw log from the start to end timestamps of the video.

💡 Recorded video and subtitles are in separate files, so the browser will typically ask for permission to "download multiple files", which must be accepted to get access to the subtitles corresponding to a video recording.

System/Application Logs

For debugging purposes, Cockpit keeps track of its internal state changes and errors in JSON-based log files, which can be downloaded or deleted from the dev page:

The top right button allows deleting all the old log files as a group.

Downloaded logs can be opened in a standard text editor, and include a sequence of events recorded with a UNIX-style epoch timestamp, together with the event severity level (e.g. debug, log, error, etc), and some kind of related message.

Alerts

Alerts received from the autopilot (STATUSTEXT), as well as application notifications (like loss of connection to the vehicle) are displayed in the alerter mini-widget.

Some alerts can be read aloud on arrival using text to speech technology, which can be configured.

Mission Planning

For vehicles with a position estimate, Mission Planning mode (in the sidebar) can be used to create basic autonomous missions, and load a mission from a file.

Planning can involve placing individual waypoints and generating basic surveys, including multiple survey regions with manually placed waypoints between them:

💡 Waypoints are currently limited to basic motion targets, but will soon be able to trigger custom MAVLink commands and other actions.

Once the mission is ready it can be uploaded to the vehicle, or saved to a file for later, before exiting mission planning via the Flight button in the sidebar:

Starting the mission is done using the play button in the bottom left corner of a Map widget.
